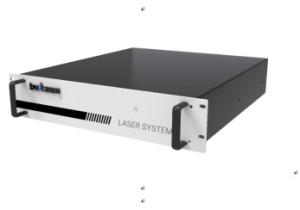

Lightning Series High Power Cw Laser 1080nm 3000w

Place of Origin : China

Brand Name : BWT

Certification : ISO9001

Model Number : BFL-CW3000-EN

MOQ : 1 Piece/Pieces

Delivery Time : 4-8weeks

Payment Terms : T/T

Supply Ability : 100,000/year

Product Name : 976nm-3000W

Output Power : 3000W

Wavelength : 1080nm

Fiber bundle diameter : 50µm

Cable Length : 15m or Customized

Application : Precision cutting ， Precision welding ， Surface treatment

Contact Now

1080nm-3000W Fiber Laser

Features:

Low costs and maintainance free

Optimized processing quality with two optional modes continuous and modulated pulse

Excellent power stability

Good beam quality and suitable for precision machining

Higher current-laser transforming efficiency

Outstanding system reliability

Maximum modulated frequency 5kHz

Simple control interface

Applications:

Precision cutting

Precision welding

Surface treatment

Drilling

3D printing(SLS/SLM)

Metal plates processing

3D cutting and welding

Li battery manufacture

Technical Specification

Optical Character
Power	3000W
Wavelength	1080±10 nm
Pump Wavelength	976nm
Output fiber core diameter	50μm
Cable Length	15m or Customized
Beam Delivery	QBH or Customized
Guide Beam	Red
Operation Mode	Continuous or Modulated
Polarization	Random
Power Stability(25℃)	＜±1.5% (2h)
Power Adjustment Scope	10%-100%
Max. Modulation Frequency	5kHz
Overall size and weights
Weight	＜45Kg
Outline Feature	100mm482mm566mm
Electronic Character
Voltage	380±20V,AC,PE,50/60Hz
Power Consumption	9 kW
Control Interface	RS232
Water Cooling Parameters
Mini. Water Cooling Capacity	7 kW
Temperature Settings	25℃( Laser Module), 30℃( QBH)
Cooling Tubes Size (Inner)	19mm
Cooling Water Flux	>30L/min
QBH Cooling Water Flux	1.5~2.0L/min
